NQ WIRELINE DRILL ROD
Wireline drill rods are an essential tool for drilling in the mining and oil and gas industries. They are used to extract core samples from the earth's surface and provide valuable information about the geological formations below. Wireline drill rods are made from high-quality steel and are designed to withstand the harsh conditions of drilling. They come in various lengths and diameters to suit different drilling requirements.
NQ drill rod configuration:

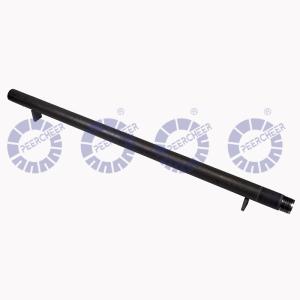

1-NQ drill rod overview
2-NQ drill rod box and pin thread profile
3-NQ drill rod case hardened illustration
NOTE:
(1)1.5 m/5 ft and 3 m/10 ft NQ drill rods are available.
(2) NRQ drill rods are also available.
| NQ Rod Nonimal Parameter | Metric | Imperial |
| NQ Drill Rod OD | 69.9 mm | 2.752 in |
| NQ Drill Rod ID | 60.3 mm | 2.374 in |
| NQ Drill Rod Weight | 23.4 kg/m3 | 52.4 lb/m3 |
| NQ Drill Rod Thread Pitch | 8.5 mm | 3 in |
| NQ Drill Rod Pin Thread Length | 44.45 mm | 1.75 in |
NQ Drill Rods Package Specifications
3.0 m/10 ft Rod Bundle (25 Rods)
Dimensions (L x W x H) 3100 x 450 x 500 mm
Volume 0.70 m3
Gross Weight 625 kg
1.5 m/5 ft Rod Bundle (25 Rods)
Dimensions (L x W x H) 1600 x 450 x 500 mm
Volume 0.36 m3
Gross Weight 320 kg
Container Shipments:
20 ft container load of 3.0 m/10 ft rods holds 25 bundles (around 625 rods)
40 ft container load of 3.0 m/10 ft rods holds 36 bundles (around 900 rods)
Our Services:
Ø Provide the technical design and solutions;
Ø Designing and manufacturing of non-standard equipment;
Ø Professional technical training and guidance on site according to the contract;
Ø Supply accessories at any time;
Ø Tele-technical consulting and services;
Ø Other special technical service according to client's requirements.
We specialized in producing of varies diamond drilling tools, such as impregnated/surface-set diamond core bits, diamond casing shoes, diamond rod shoes, reaming shells, TC core bits/casing shoes/TC rod shoes, PDC bits, Thin Wall Bits, core lifters, core lifter cases, core barrels, and kinds of drilling rigs etc.
